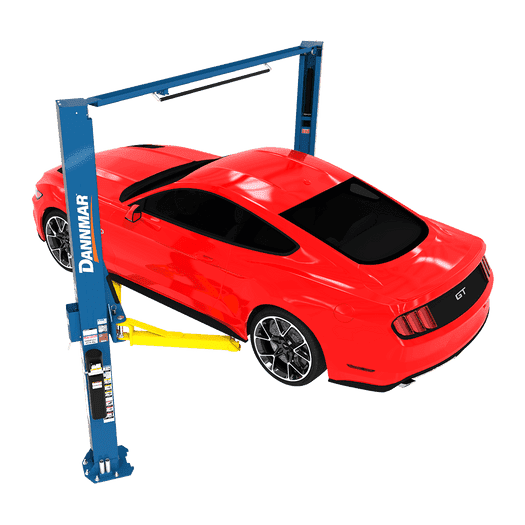

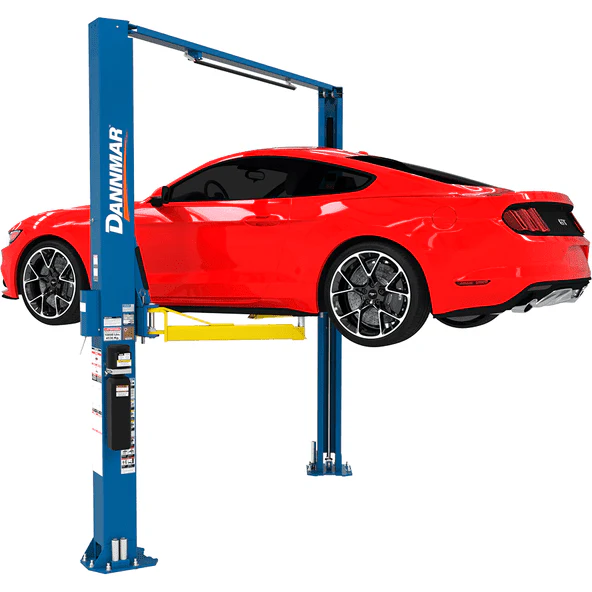

D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift

Description

Why You’ll Love The D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift

1. 10,000 lb lifting capacity for serious jobs – Built to handle heavy vehicles with ease, so you can confidently lift everything from daily drivers to larger vehicles without second guessing.

2. Asymmetric clear-floor design for better access – The open floor and rotated columns give you more door clearance and workspace freedom, making every job quicker and more comfortable.

3. Dual hydraulic direct-drive cylinders for reliable power – Smooth, consistent lifting performance means less downtime and more trust in your equipment every time you use it.

4. Single-point safety release for simple operation – Designed for efficiency and safety, letting you control the lift quickly and securely without unnecessary complexity.

Your life, with the D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift

You’re no longer working around limitations.

You pull the vehicle in, position it easily thanks to the flexible arm system, and lift it smoothly in seconds. No awkward adjustments. No wasted time.

Everything feels more controlled. More professional.

Whether you’re maintaining your own vehicles or running a busy workshop, you’re working faster, safer, and with the confidence that your lift can handle the job.

The D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift in a nutshell:

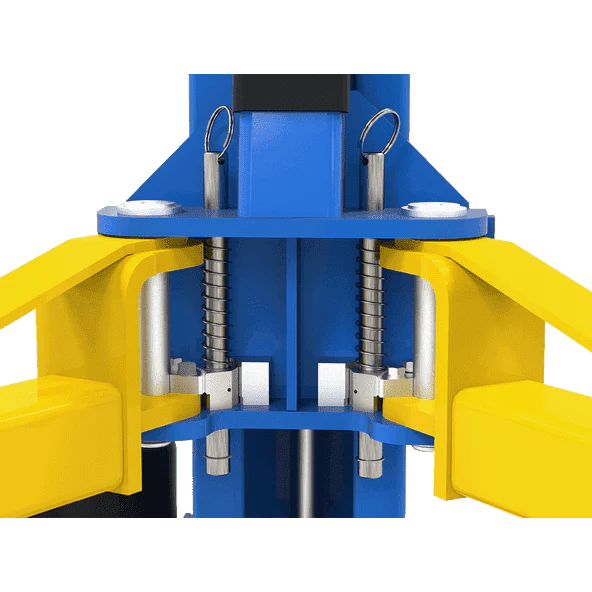

1. Tru-Metric™ Arm Design – Multiple arm configurations give you precise positioning, so you can lift a wider range of vehicles with ease.

2. Telescoping Screw Pads – Adjustable pads improve contact flexibility, helping you achieve a secure lift point every time.

3. Overhead Safety Shutoff Bar – Built-in protection stops the lift if a vehicle reaches the top, reducing the risk of damage.

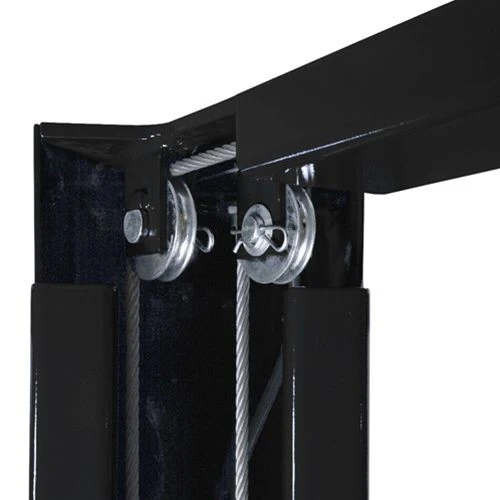

4. Heavy-Duty Equalizer Cables – Aircraft-quality cables and oversized sheaves reduce wear and increase long-term durability.

D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift specifications

Lifting Capacity

10,000 lbs (4,536 kg)

Lift Type

Asymmetric

Lowered Height + Pad

5″ (127 mm)

Maximum Lift Height (Top Lock)

78.5″ (1,994 mm)

Maximum Rise

69″ (1,753 mm)

Overall Height

145″ (3,683 mm)

Key Features

• 30° rotated single-piece columns

• Single-point safety release

• Drop-end arms for lower pad height

• Dual hydraulic direct-drive cylinders

• Electric/hydraulic power system

• Automatic arm restraints

• 53″ tall carriage for added strength

• 1/2” aircraft-quality equalizer cables

• Oversized cable sheave to reduce fatigue

• 4-piece 63 mm stackable adapter set included

• Drop-in contact pads with adapter pins

D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift documents and materials

For detailed installation guidance, operation instructions, and maintenance information, please refer to the official Dannmar documentation provided with your lift or available via the supplier.
