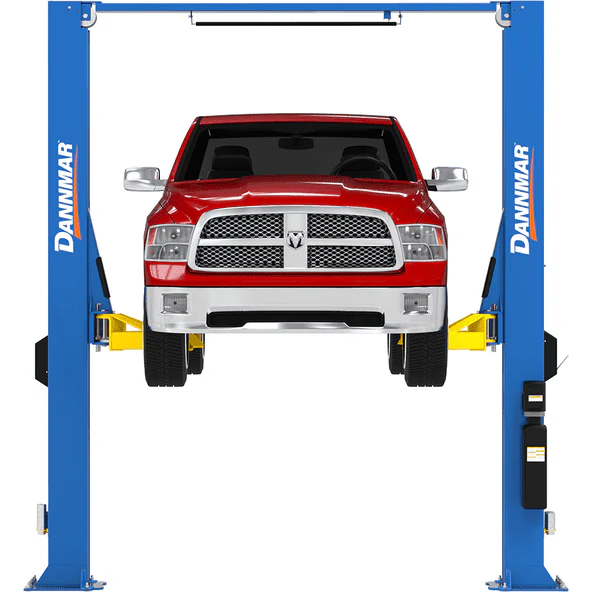

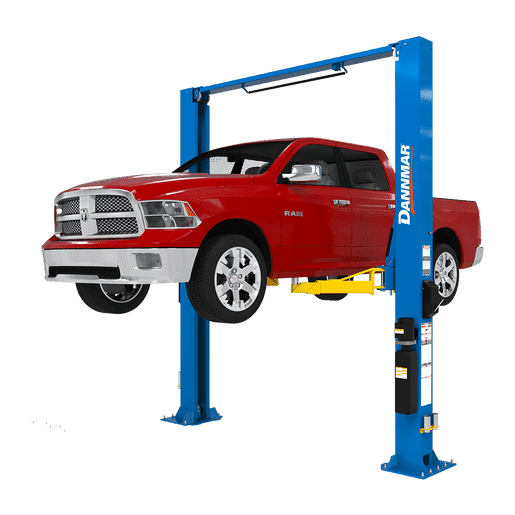

D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post

Description

Why You’ll Love The D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post

1. 12,000 lb lifting capacity with dual hydraulic cylinders – Built to handle heavier vehicles with ease, so you can work on trucks, SUVs, and commercial vehicles without second-guessing your equipment.

2. Dual-synchro equalization system – Keeps both sides lifting evenly, giving you stable, balanced elevation every time and reducing the risk of uneven loads.

3. Oversized cable sheaves with aircraft-quality cables – Designed to reduce cable fatigue and extend lifespan, meaning less maintenance and more uptime in your workspace.

4. Extended height top beam with safety shutoff bar – Provides greater overhead clearance while protecting taller vehicles, so you can lift confidently without worrying about accidental contact.

Your life, with the D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post

You’ve got a full schedule, vehicles lined up, and no time for unreliable equipment.

With the D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post, everything feels smoother. You position the vehicle, engage the lift, and it rises evenly and steadily. No hesitation. No adjustments.

The extra clearance means you’re not ducking or second-guessing fit. The solid build gives you confidence underneath every vehicle.

You’re working faster. Safer. With less stress.

And that’s exactly how your workshop should feel.

The D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post in a nutshell:

• Dual Direct-Drive Hydraulic Cylinders – Deliver consistent lifting power so you can raise heavy vehicles smoothly and efficiently.

• Single-Point Safety Release – Allows you to disengage safety locks easily, saving time while maintaining full control.

• Rubber Lift Pads with Stackable Adapters – Protect vehicle contact points while giving you flexibility across different vehicle types.

• Padded Overhead Safety Shutoff Bar – Helps prevent damage to taller vehicles, giving you peace of mind during every lift.

D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post specifications

Lifting System

• Dual direct-drive hydraulic cylinders

• Dual-synchro equalization system

• Single-point safety release

Cables & Components

• 1/2” aircraft-quality equalizer cables

• Oversized cable sheave diameter to reduce fatigue

Dimensions

• Height Overall: 168.75″ (4,286 mm)

• Width Overall: 155.25″ (3,943 mm)

• Width Outside Columns: 142.5″ (3,620 mm)

• Width Inside Columns: 119.5″ (3,035 mm)

• Drive-Thru Clearance: 105” (2,663 mm)

• Floor to Top Switch: 162.75” (4,131 mm)

Lifting Capabilities

• Capacity: 12,000 lbs

• Max Load per Arm: 3,000 lbs (1,361 kg)

• Arm Reach: 31.5″ (800 mm) – 58” (1,473 mm)

Additional Measurements

• Outside Edge of Runways: 72.5” (1,842 mm)

• Outside Length: 194.75” (4,947 mm)

Safety & Build

• Padded overhead safety shutoff bar

• Durable rubber lift pads with stackable adapters

D2-12C 12,000-lbs. Capacity Heavy-Duty Two-Post documents and materials

For additional product information, manuals, and technical documents, please get in touch with our team—we’ll make sure you have everything you need to get set up with confidence.
