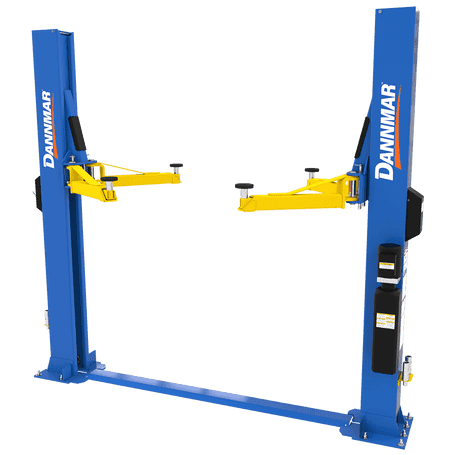

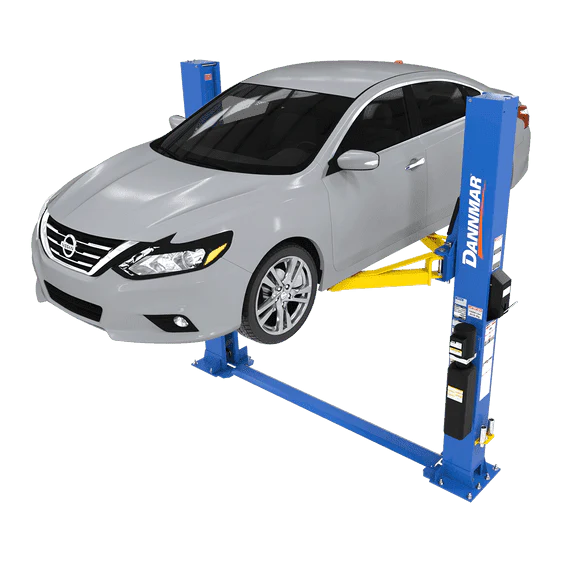

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift

Description

Why You’ll Love The Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift

1. 8,000 lb lifting capacity with dual hydraulic cylinders – You can confidently lift a wide range of vehicles, giving you the freedom to handle more jobs without hesitation.

2. Electric/hydraulic power system – Delivers smooth, reliable lifting performance so you spend less time adjusting and more time getting the job done.

3. Automatic arm restraints and single-point safety release – Keeps every lift secure and controlled, so you feel safe and in command from start to finish.

4. Telescoping arms with drop-end design – Makes positioning quicker and easier, even on tricky vehicles, reducing setup time and frustration.

Your life, with the Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift

You walk into your garage knowing exactly what needs to get done—and this time, there’s no awkward maneuvering or wasted effort.

The vehicle is lifted smoothly into position. Everything is accessible. You’re not working around limitations anymore.

Jobs that used to feel like a hassle now feel straightforward. Faster turnarounds. Cleaner work. Less strain on your body.

Whether you’re running a busy shop or upgrading your home garage, this is what efficiency feels like—controlled, capable, and built for real work.

The Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift in a nutshell:

1. Heavy-duty A36 steel base plate – The large 17″ x 19″ base plate delivers a solid foundation, improving stability and long-term durability.

2. Self-lubricating UHMW bearings – Dura-glide polyethylene bearings reduce friction and wear, meaning smoother operation with less maintenance.

3. Aircraft-quality equalizer cables – 1/2″ heavy-duty cables and oversized sheaves reduce fatigue, helping extend the lifespan of the system.

4. Stackable adapter set included – The 4-piece 63 mm adapters give you flexibility to safely lift different vehicle types right out of the box.

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift specifications

General

• Style: Floorplate

• SKU#: 5175316

Capacity

• Lifting Capacity: 8,000 lbs. (3,629 kg)

Dimensions

• Lowered Height + Pad: 4.25” (108 mm)

• Max. Lift Height (Top Lock): 80.5” (2,045 mm)

• Max. Rise: 72” (1,829 mm)

• Overall Height: 113” (2,870 mm)

• Overall Width: 132” (3,353 mm) or 145” (3,683 mm)

• Width Outside Columns: 142.5″ (3,620 mm)

Door Requirements

• Actual Door Height: 96″

• Door Thickness: 3″

Build & Components

• Electric / hydraulic power system

• Dual hydraulic direct-drive cylinders

• Safety locks in each column (every 3″)

• Automatic arm restraints

• Single-point safety release

• Telescoping arm design

• Drop-end arms for lower pad height

• 1/2″ aircraft-quality equalizer cables

• Oversized cable sheaves

• Self-lubricating UHMW polyethylene bearings

• 17″ x 19″ A36 steel base plate

• 4-piece 63 mm stackable adapter set included

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift documents and materials

For full setup guidance, maintenance details, and technical breakdowns, refer to the official manual and documentation available from the manufacturer.
