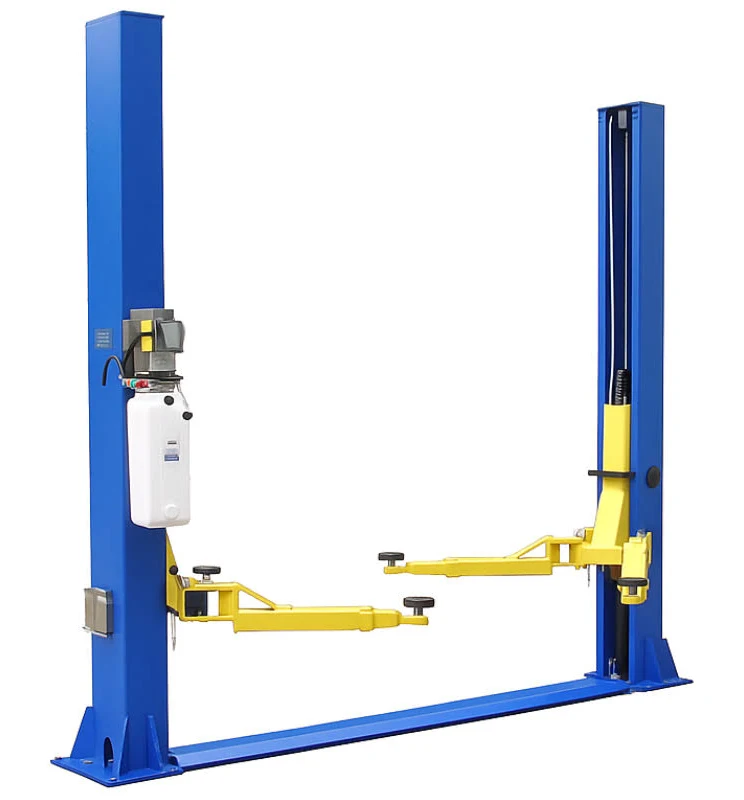

DL9 Two-Post Lift

Description

Why You’ll Love The DL9 Two-Post Lift

1. 9,000 lb lifting capacity – Built to handle a wide range of vehicles, giving you the confidence to lift everything from daily drivers to light trucks without hesitation.

2. Clear floor design with 75 1/2″ maximum rise – Enjoy full under-vehicle access, making maintenance, repairs, and inspections faster and far more comfortable.

3. Fast 45-second lift time – Spend less time waiting and more time working, helping you stay efficient and productive throughout the day.

4. Flexible arm reach and wide drive-thru – With adjustable arms and a 90 1/4″ drive-thru width, positioning vehicles is simple and stress-free, even in busy workshop environments.

Your life, with the DL9 Two-Post Lift

You pull the vehicle in, position it with ease, and within seconds it’s lifted to the perfect working height.

No awkward angles. No crawling around. Just clear, open access underneath.

Jobs that used to take longer now feel smooth and controlled. You move from task to task without friction, knowing your equipment can keep up.

Whether you’re working through a full schedule or tackling a single project, the DL9 Two-Post Lift helps you stay focused, efficient, and in control of your workspace.

The DL9 Two-Post Lift in a nutshell:

1. Clear Floor Configuration – The overhead design removes floor obstructions, giving you safer movement and unrestricted workspace beneath the vehicle.

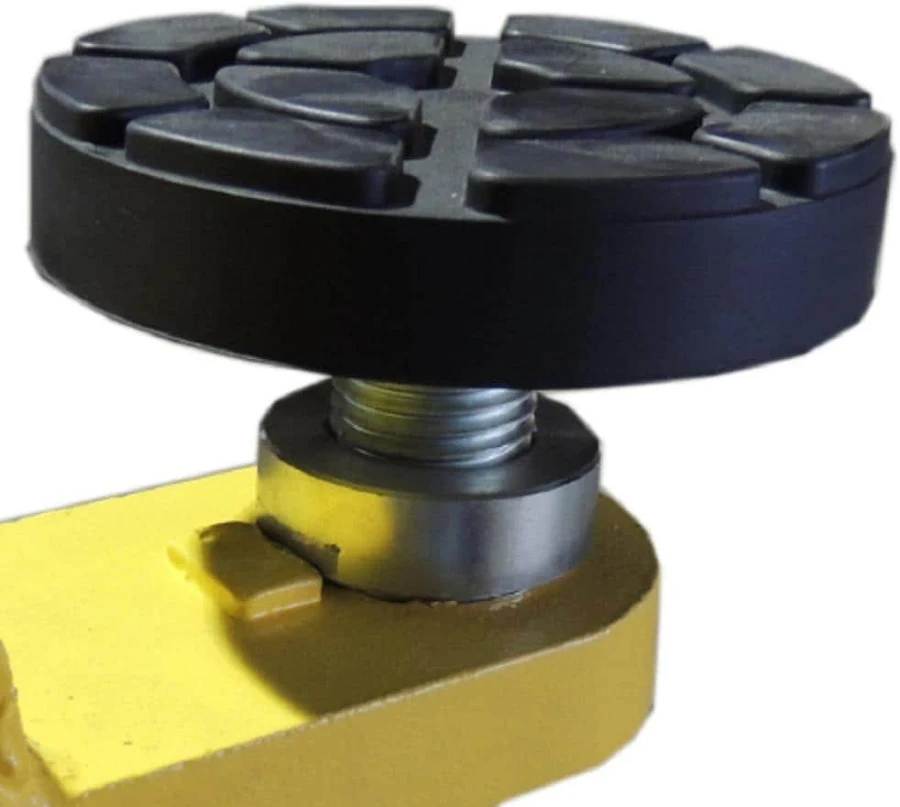

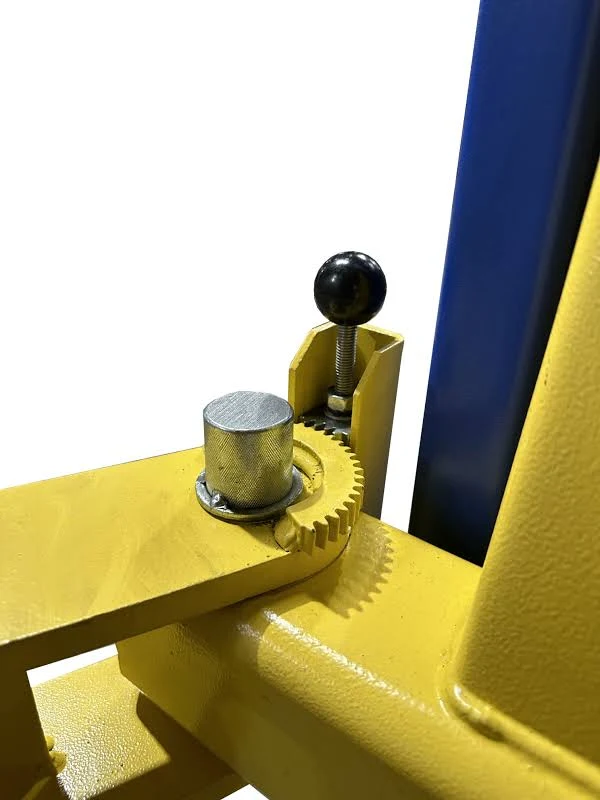

2. Adjustable Front & Rear Arms – Wide reach ranges allow you to securely lift different vehicle types, improving versatility and positioning accuracy.

3. Compact Footprint – Designed to fit within standard workshop spaces while still delivering professional-grade lifting capability.

4. 220V 2HP Motor – Reliable single-phase power ensures consistent lifting performance without complicated electrical requirements.

DL9 Two-Post Lift specifications

Capacity

9,000 lbs.

Maximum Rise with Extensions

75 1/2″

Overall Height

11′ 9″

Ceiling Height Required

12′

Overhead Switch Height

137 5/8″

Width Inside Columns

109″

Overall Floor Width

10′ 9″

Drive Thru Width

90 1/4″

Front Arm Reach (Min/Max)

28″ / 41 1/2″

Rear Arm Reach (Min/Max)

30 1/2″ / 44 3/4″

Column Size

6 13/16″ x 10 1/2″

Column Base

15″ x 18″

Time to Full Rise

45 seconds

Motor

220 Volt, 2HP Single Phase

DL9 Two-Post Lift documents and materials

For manuals, parts information, and technical documents relating to the DL9 Two-Post Lift, please get in touch with our team and we’ll make sure you have everything you need.
