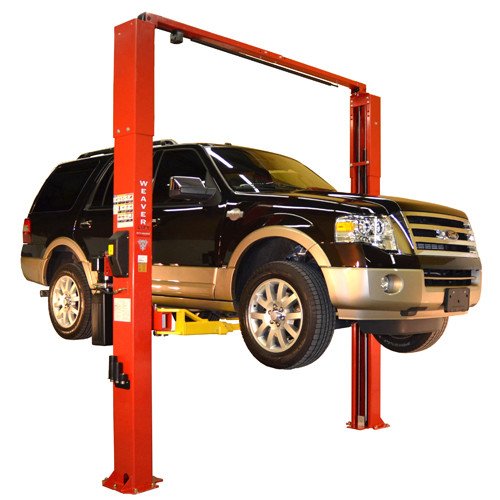

Weaver W-Pro10 Red Certified Overhead 2 Post Lift

Description

Lift With Confidence Using the Weaver W-Pro10 Red Certified Overhead 2 Post Lift

If you’re serious about your workshop, the Weaver W-Pro10 Red Certified Overhead 2 Post Lift gives you the strength, flexibility, and control you need to handle daily vehicle lifting with confidence.

With a 10,000 lb lifting capacity, this lift is built for both professional garages and serious home setups. It combines certified safety with practical design features that make your workflow smoother, faster, and more reliable.

This isn’t just about lifting vehicles — it’s about working smarter, reducing downtime, and protecting both your equipment and your customers’ vehicles.

Why Choose the Weaver W-Pro10 Red Certified Overhead 2 Post Lift?

The Weaver W-Pro10 Red Certified Overhead 2 Post Lift is designed to adapt to real-world workshop demands.

The super symmetric arm design allows you to switch between symmetric and asymmetric lifting. That means you can position vehicles more easily, whether you’re working on cars, SUVs, or light trucks.

Its direct drive hydraulic cylinders deliver consistent lifting power, while the automatic hydraulic safety system locks the lift securely at all positions. This gives you peace of mind every time a vehicle is raised.

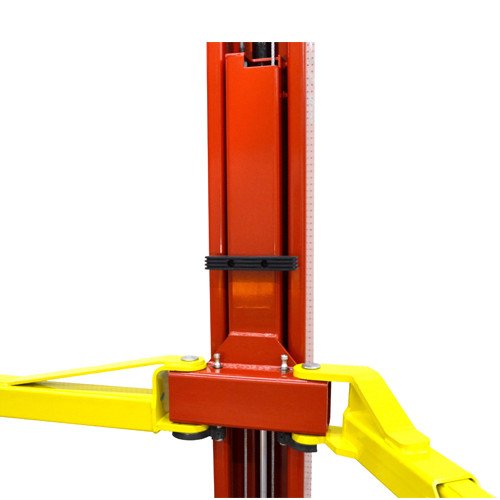

With oversized carriages, the load is distributed more evenly across the columns. This reduces stress on the structure and increases long-term durability.

Built for Real Workshops – Weaver W-Pro10 Red Certified Overhead 2 Post Lift Features

Flexible Arm Configuration for Any Vehicle

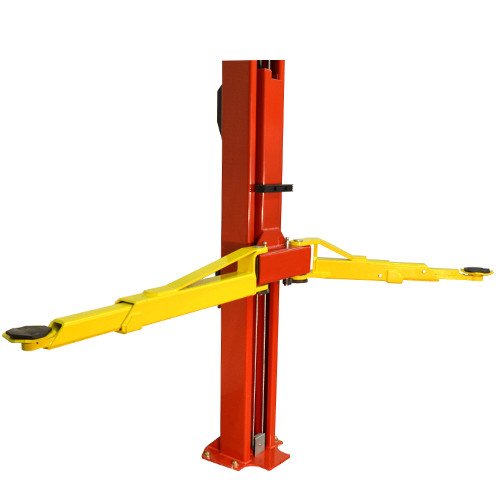

The combination of 3-stage front arms and 2-stage rear arms gives you the flexibility to handle a wide range of vehicle types.

This means faster positioning, less adjustment time, and more jobs completed in a day.

Low Profile Pad Height for Easy Access

With a low pad height starting at just 3 5/8 inches, this lift can handle lower vehicles without hassle.

That’s ideal for performance cars or vehicles with reduced ground clearance.

Adjustable Height and Width to Fit Your Space

The lift offers adjustable overall height and column width, making it suitable for tighter garages or workshops with ceiling restrictions.

You can configure it to fit under a 12-foot ceiling or expand where space allows.

Single Point Lock Release for Simpler Operation

The single point lock release system lets you unlock both columns from one side.

This saves time and reduces unnecessary movement around the lift.

Built-In Protection for Vehicles and Equipment

Rubber door guards and a padded overhead shut-off bar help prevent accidental damage during operation.

Hydraulic hoses are routed inside the columns, protecting them from wear and external damage.

Weaver W-Pro10 Red Certified Overhead 2 Post Lift Specifications

• Lifting Capacity: 10,000 lbs

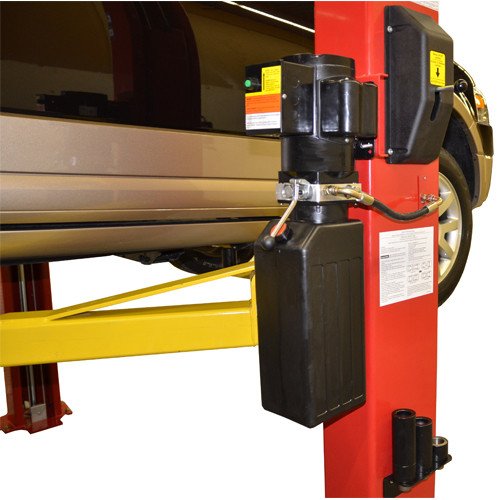

• Motor: 2HP, 208–230V, 60Hz, Single Phase

• Amperage: 12–16 amps (20A circuit required)

Dimensions & Fit:

• Overall Width: 137″ or 131″

• Overall Height: 143″ or 149″

• Minimum Ceiling Height: 150″ or 144″

• Width Between Columns: 115″ or 109″

• Drive-Thru Clearance: 105″ or 99″

Lifting Range:

• Max Lifting Height (with 5″ adapter): 76 5/8″

• Low Pad Height: 3 5/8″

• Adapter Heights: 1 3/4″, 3 1/2″, 5″

Performance:

• Lifting Time: 48 seconds (unloaded), 53 seconds (full load)

Construction:

• Column Steel Thickness: 6mm

• Arm Steel Thickness: Up to 25mm (front inner)

Installation Requirements:

• Concrete: Minimum 4 1/4″ depth, 3000 PSI

Additional:

• Shipping Weight: 1650 lbs

• Hydraulic Oil: AW32 or AW46

Designed for Durability and Long-Term Use

The Weaver W-Pro10 Red Certified Overhead 2 Post Lift is built with durability in mind.

Features like self-lubricating UHMW polyethylene slide blocks reduce maintenance requirements while ensuring smooth operation over time.

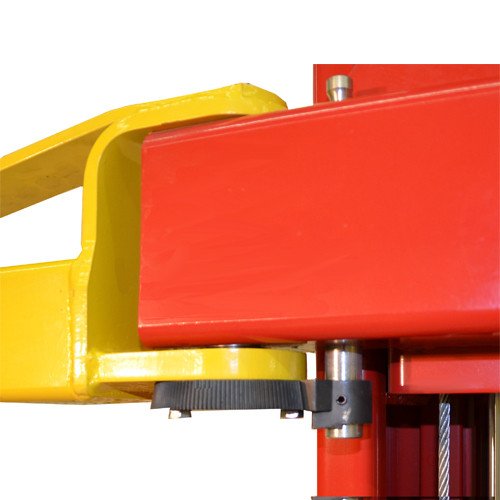

The heavy-duty arm restraint system, with oversized steel components, is designed for reliability under repeated daily use.

Finished in a powder-coated red paint, the lift resists wear and corrosion while maintaining a professional appearance.

Weaver W-Pro10 Red Certified Overhead 2 Post Lift for Professional Results

Whether you’re running a busy garage or upgrading your home workshop, the Weaver W-Pro10 Red Certified Overhead 2 Post Lift delivers the performance you need.

It gives you:

• Faster workflow

• Safer lifting

• Greater flexibility across vehicle types

This is the kind of equipment that pays for itself through efficiency and reliability.
